Variable Speed Drives for Motors – Working, Uses, and Products
A variable speed drives (VSD) is a device that controls the speed of an electric motor. It lets a motor run faster, slower, or stop smoothly instead of running at full speed all the time. Normally, when you switch on a motor, it runs at one fixed speed. A VSD sits between the power supply and the motor and adjusts the power going to the motor. By doing this, it controls how fast the motor turns.
How Does a Variable Speed Drive Work?
Many people ask, How does a variable speed drive work? The idea is actually simple. A variable speed drive controls the speed of an electric motor by adjusting the power supplied to it. Instead of running the motor at full speed all the time, the drive gives only the speed that the process really needs.
Let’s break it down step by step.
Step-by-Step Working Principle
A variable speed drive works in three main stages:
1. It converts the incoming AC power into DC power.
2. It processes and controls this power inside the drive.
3. It converts the DC back into controlled AC power for the motor.
By doing this, the drive can precisely control motor speed and torque.
Types of Variable Speed Drives
Not all motors or industries have the same control needs. Some applications require simple speed control, while others demand very high precision. That is why different types of variable speed drives are available in the market.
Each type is designed for a specific purpose, motor type, and level of control. Let’s look at the main categories used in industry today.
1. AC Drives
AC drives are the most commonly used Variable Speed Drives in modern industries. They are mainly used to control AC induction motors and are known for their energy efficiency and reliability. These drives work by changing the frequency and voltage supplied to the motor. Because most industrial motors are AC motors, AC drives have become the preferred choice in many sectors.
AC drives are popular because they are cost-effective, easy to maintain, and offer good energy savings.
2. DC Drives
DC drives were widely used before AC drive technology became advanced. Even today, they are still used in some specific applications where precise torque control at low speeds is required. DC drives control the speed of DC motors by adjusting the armature voltage or field current. DC drives are now less common in new installations, because AC drives have improved a lot.
3. Servo Drives
Servo drives are used where very accurate position, speed, and torque control are required. These drives work with servo motors and use feedback systems to maintain precise motion control. They continuously monitor motor performance and make instant corrections. That is why they are preferred in high-precision environments. Servo drives are more advanced and expensive compared to standard Variable Speed Drives, but they offer extremely high accuracy.
4. Mechanical Variable Speed Drives
Mechanical drives are the oldest form of speed control. Instead of using electronics, Speed is adjusted physically by changing the gear ratio or pulley diameter. Today, mechanical drives are rarely used in new industrial systems because electronic drives are more efficient and flexible.
Variable Speed Drive vs VFD
There is a lot of confusion around variable speed drive vs vfd. Many people use these terms interchangeably, but they are not exactly the same.
Here’s the simple truth: every VFD is a type of variable speed drive, but not every variable speed drive is a VFD. Once you understand this, the confusion becomes much easier to clear.
1. Definition
VSD means Variable Speed Drive, a broad term for any system that controls motor speed.
VFD means Variable Frequency Drive, A specific type of electronic drive that controls speed by varying frequency.
2. Scope
VSD is a broad category that includes mechanical drives, DC drives, and electronic drives.
VFD is a subcategory that comes under VSD.
3. Motor Compatibility
VSD can be used with AC motors, DC motors, or mechanical systems.
VFD is mainly designed for AC induction motors.
4. Level of Precision
VSD depends on the type of drive used.
VFD typically offers precise and efficient speed control for AC motors.
Advantages of Variable Speed Drives
Variable Speed Drives have become a standard choice in modern industries because they make motors smarter, more efficient, and easier to manage. If you are planning to improve energy efficiency or equipment life, understanding the Advantages of variable speed drives is important.
1. Energy Savings
One of the biggest advantages is reduced electricity consumption. Instead of running the motor at full speed all the time, Variable Speed Drives adjust the speed based on actual demand.
2. Better Process Control
Variable Speed Drives give you precise control over motor speed. This means your process can run exactly at the required level without guesswork.
3. Reduced Mechanical Stress
When motors start directly at full speed, they create sudden mechanical shock on belts, gears, and couplings. Over time, this causes wear and damage.
4. Lower Maintenance Cost
Less mechanical stress means fewer breakdowns. Since the motor and connected equipment run more smoothly, maintenance requirements come down.
How to Prevent Torsional Vibration in Variable Speed Drive?
To prevent torsional vibration in a Variable Speed Drive system, the goal is to keep the motor and shaft running smoothly without twisting stress.
In simple terms, you should choose the correct drive size, align the motor and coupling properly, and avoid running the machine at its critical vibration speeds. Using flexible couplings or dampers also helps absorb shocks. Regular inspection and vibration monitoring make sure small issues are caught early before they damage the equipment. When the drive is selected correctly and the installation is done properly, torsional vibration can usually be kept under control.
How to choose Variable Speed Drives
1. Power rating and voltage
Start with the basics. Your drive should match the motor’s power and voltage. Check the motor’s kW or HP rating, the supply voltage (single phase or three phase), and the motor’s full load current. In many cases, engineers choose a drive slightly higher than the motor rating to handle load changes safely. The best practice is always to follow the motor nameplate details while selecting.
2. Control method
Different applications need different levels of speed and torque control, so choosing the right control method is important. For simple uses like pumps and fans, V/f control is usually enough. If you need better torque performance, vector control is a good choice. For very high precision motion, servo control is used. In short, basic applications can use simple control, while heavy loads or precise systems need advanced control methods.
3. Protection features
A good Variable Speed Drive should protect both the motor and the drive itself. Look for built-in protections like overload protection, overvoltage and undervoltage protection, short circuit protection, overtemperature protection, and phase loss protection. These safety features help prevent costly motor damage and reduce unexpected downtime, keeping your system running smoothly. Following a proper motor protection guide along with these built-in protections helps ensure safe and reliable motor operation.
4. Communication protocols
In modern automation setups, drives often need to talk to PLC or SCADA systems. So it is important to check whether the drive supports common protocols like Modbus, Profibus, Ethernet/IP, or CANopen. If you plan to connect the drive to an automation system, proper communication compatibility will make integration much easier and smoother.
5. Environmental protection (IP rating)
The place where you install the drive matters a lot. Check the dust level, moisture or water exposure, ambient temperature, and whether it is indoor or outdoor installation. If the area is dusty or humid, choose a drive with a higher IP rating and proper enclosure. This helps improve reliability and reduces the risk of failure.
6. Brand reliability and support
Finally, don’t ignore the brand and service support. Even a good drive can become a headache if spare parts or service are not easily available nearby. Before buying, check the brand’s reputation, local service availability, warranty terms, and technical support quality. Choosing a reliable brand with strong after-sales support will save you a lot of trouble in the long run.
Our Variable Speed Drive Products

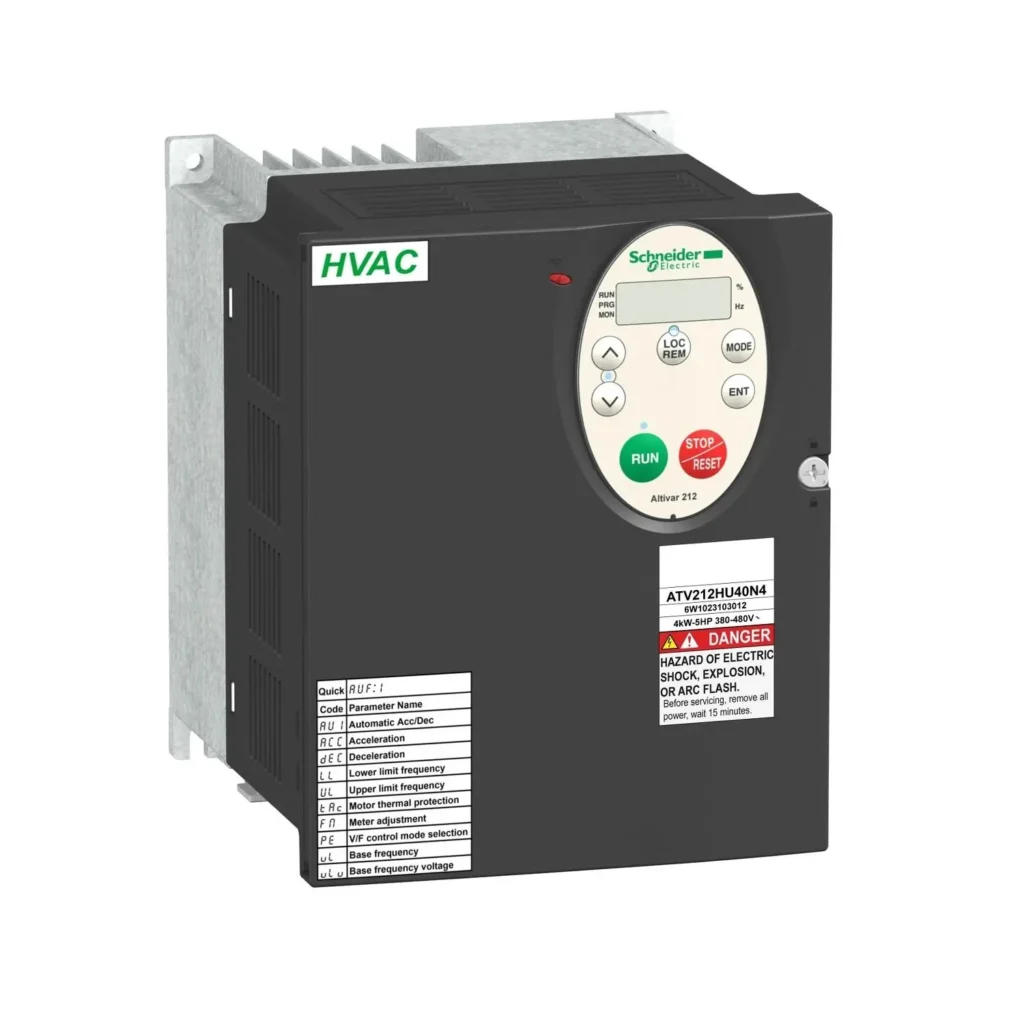

Schneider Electric Altivar ATV212HU40N4 variable speed drive 4kW 480V 3-phase with EMC filter and IP21 protection
Schneider Electric Altivar ATV212HU55N4 variable speed drive 5.5kW (7.5hp), 480V 3-phase with EMC filter and IP21 protection

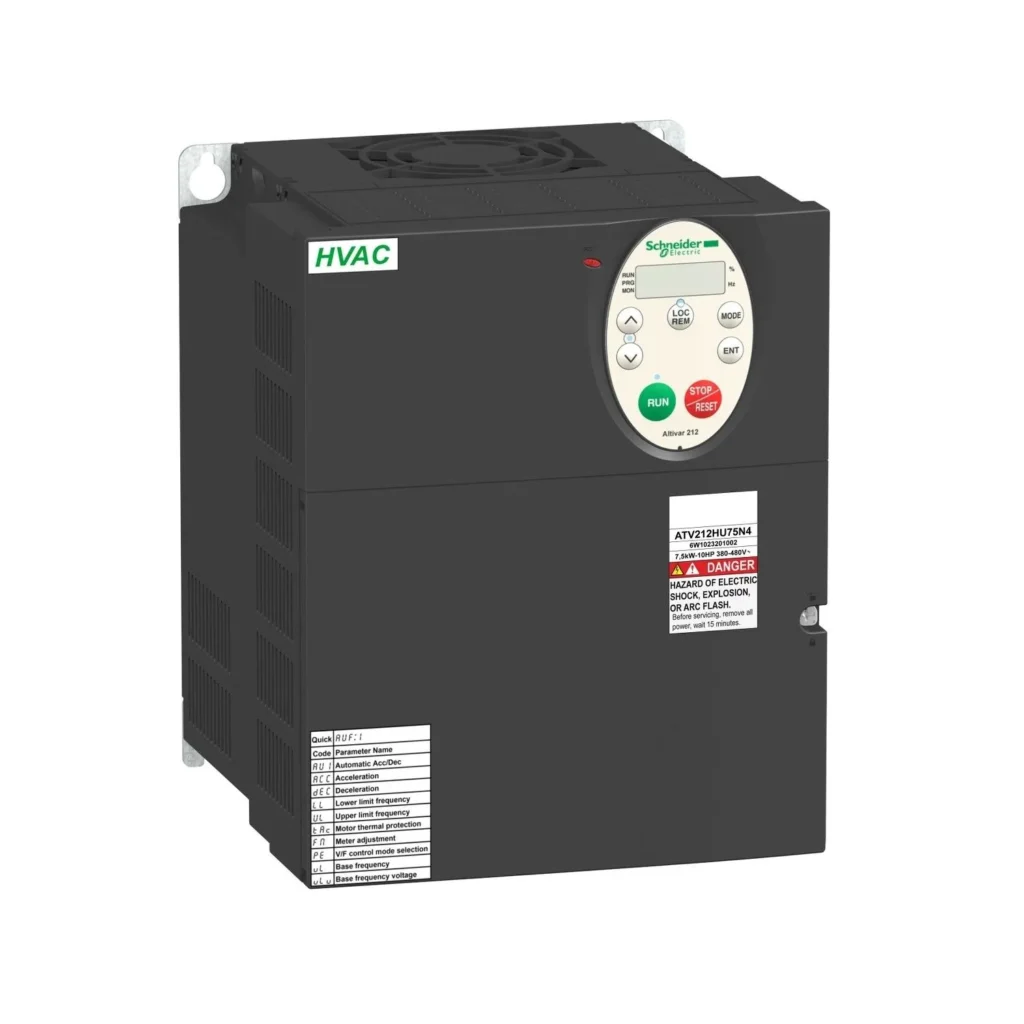

Schneider Electric Altivar ATV212HD11N4 variable speed drive 11kW (15hp), 480V 3-phase with EMC filter and IP21 protection
Schneider Electric Altivar ATV212HU22N4 variable speed drive 2.2kW (3hp), 480V 3-phase with EMC filter and IP21 protection

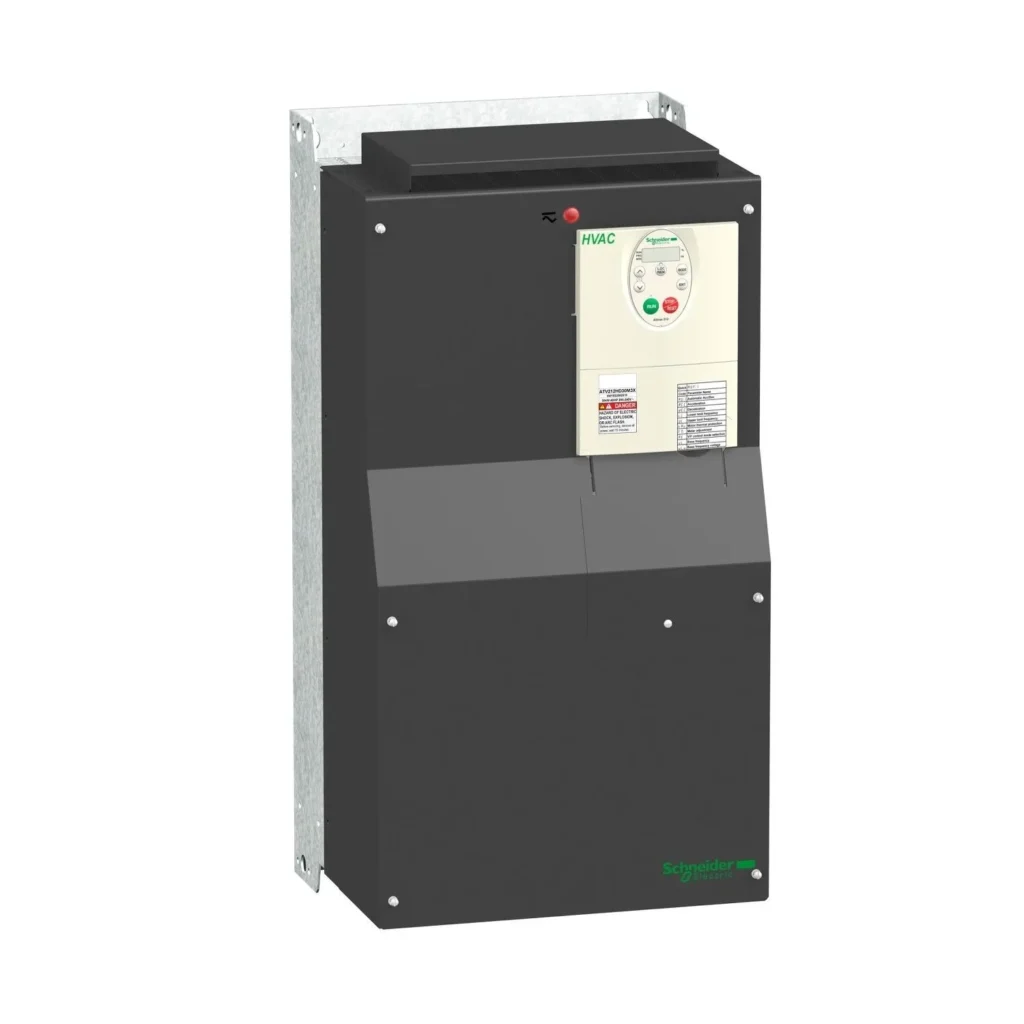

Schneider Electric Altivar ATV212HD30N4 variable speed drive 30kW (40hp), 480V 3-phase with EMC filter and IP21 protection

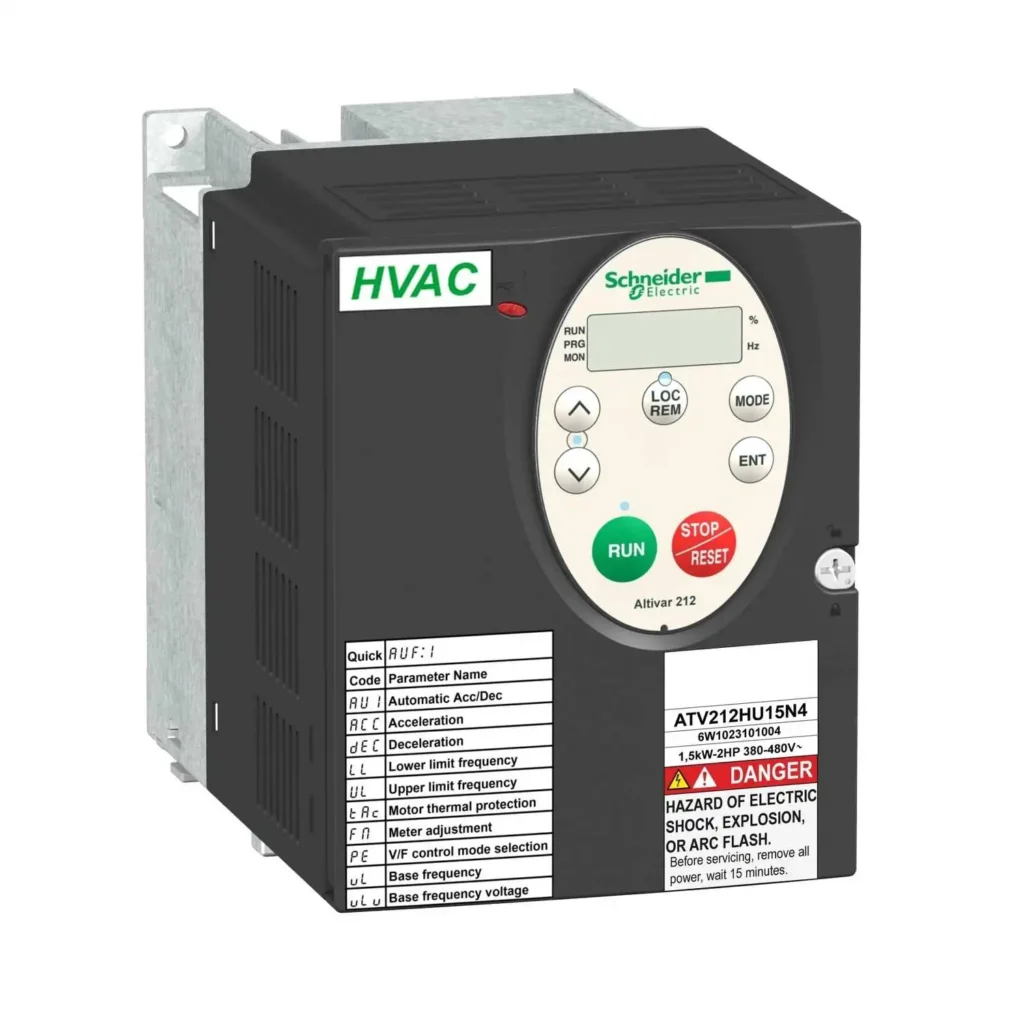

Schneider Electric Altivar ATV212HU15N4 variable speed drive 1.5kW (2hp), 480V 3-phase with EMC filter and IP21 protection
Schneider Electric Altivar ATV212HU30N4 variable speed drive 3kW, 480V 3-phase with EMC filter and IP21 protection

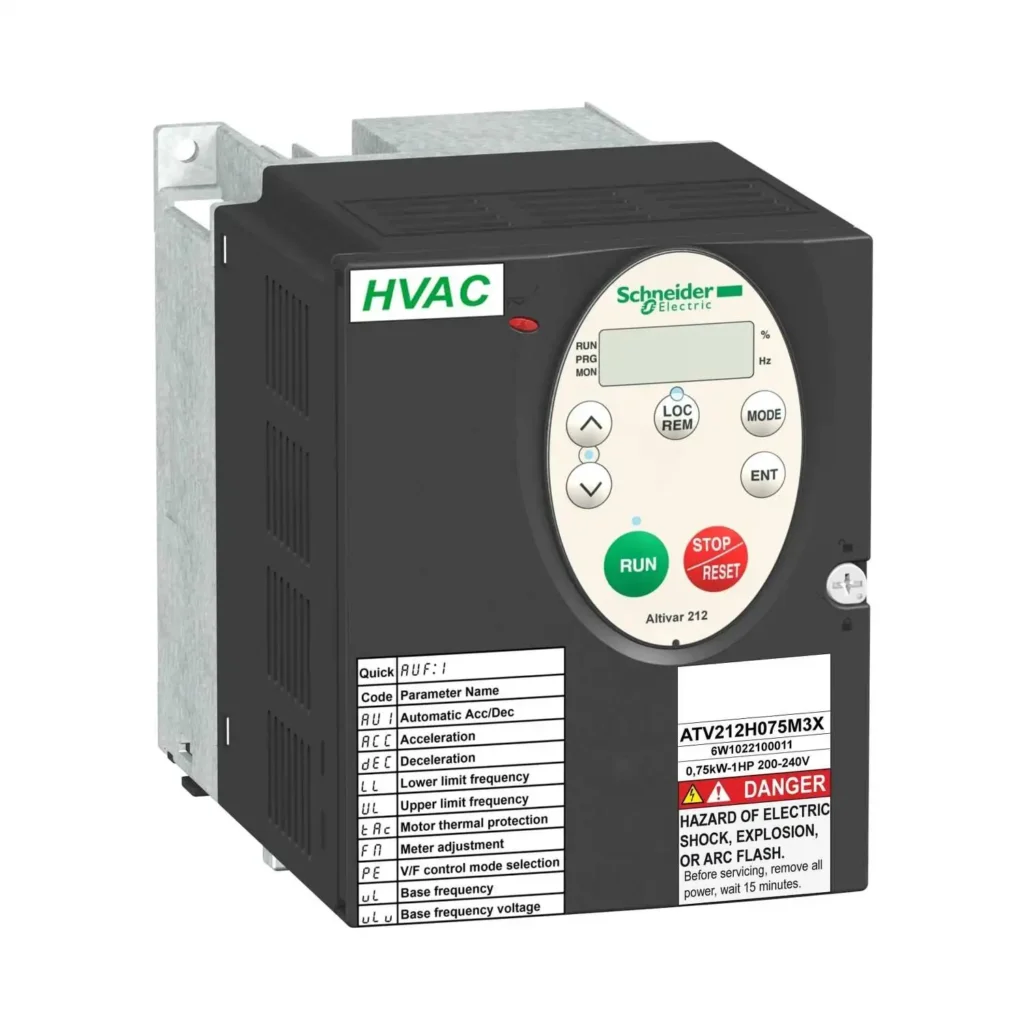

Schneider Electric Altivar ATV212H075N4 variable speed drive 0.75kW (1hp), 480V 3-phase with EMC filter and IP21 protection
Conclusion
Variable Speed Drives have become an essential part of modern motor control systems. They help industries run motors more efficiently by adjusting speed based on actual demand instead of running at full speed all the time.
If you are planning to install or upgrade a motor system, take time to choose the right Variable Speed Drives for your application. A proper selection today can improve efficiency, reduce maintenance problems, and deliver better results for many years.
FAQ
1. What is the main function of a variable speed drive?
The main function of a variable speed drive is to control the speed of an electric motor by adjusting the power supplied to it. This allows the motor to run only at the required speed, which helps save energy, improve process control, and reduce wear on the equipment.
2. Is a VFD the same as a variable speed drive?
No, a VFD is not exactly the same as a variable speed drive. A VFD is a type of variable speed drive that controls the speed of an AC motor by changing the frequency. In simple terms, every VFD is a variable speed drive, but not every variable speed drive is a VFD.
3. Where are variable speed drives mostly used?
Variable speed drives are mostly used in pumps, fans, HVAC systems, conveyor belts, compressors, and industrial automation machines. They are common in industries where motor speed needs to be controlled to save energy and improve performance.
4. Can variable speed drives save electricity?
Yes, variable speed drives can save electricity. They reduce motor speed based on actual demand instead of running at full speed all the time, which cuts power consumption and lowers energy bills.
5. How do I choose the right variable speed drive for my motor?
Choose a variable speed drive that matches your motor’s power (kW or HP), voltage, and full load current. Also consider the application type, required control method, protection features, and installation environment. As a safe rule, always follow the motor nameplate details and select a reliable brand with good local support.
